AMD High-Performance MicroArchitecher

架构图来自 Cardyak_s Microarchitecture Block Diagram Images

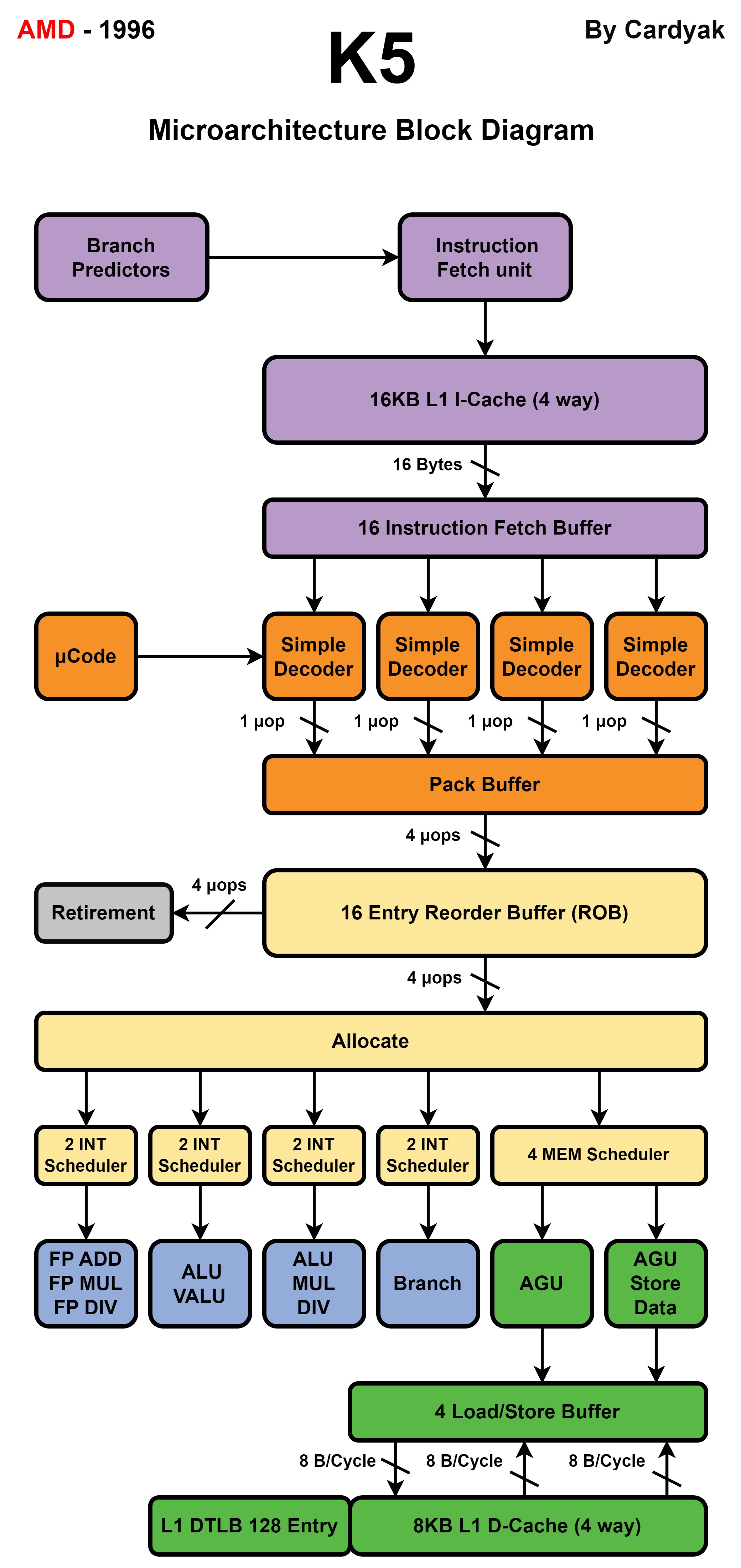

1996 - K5:

1997 - K6:

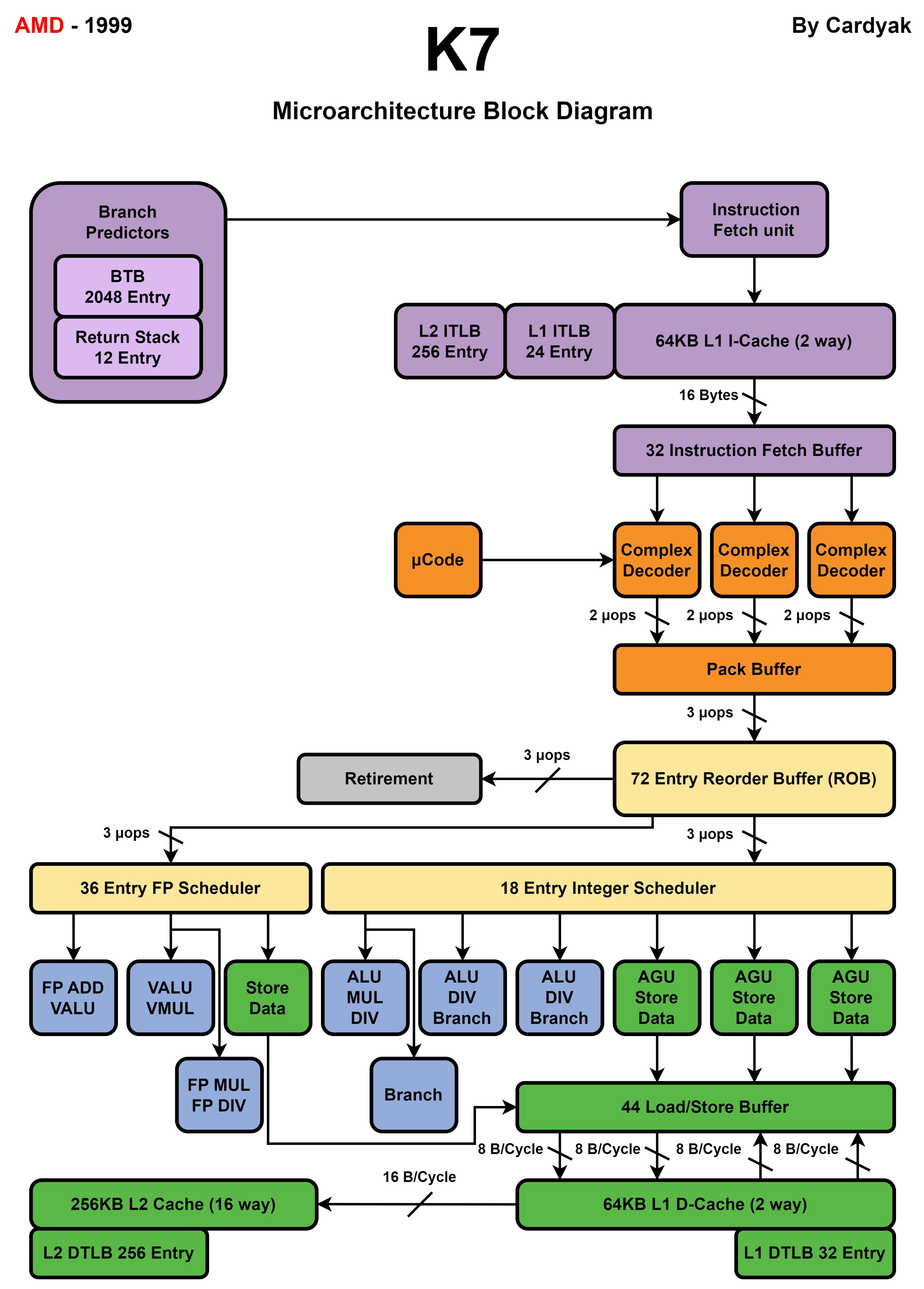

1999 - K7:

2003 - K8:

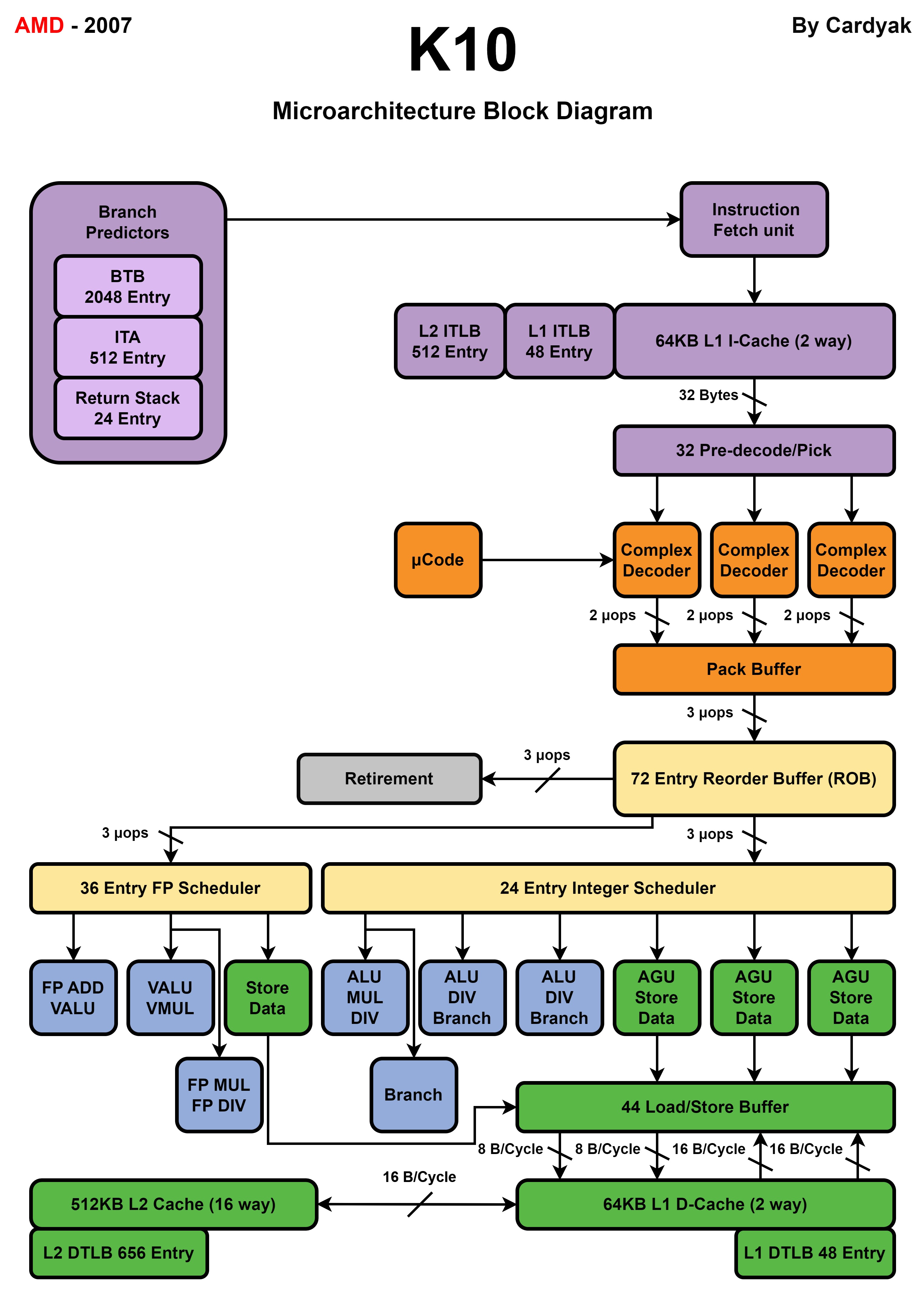

2007 - K10:

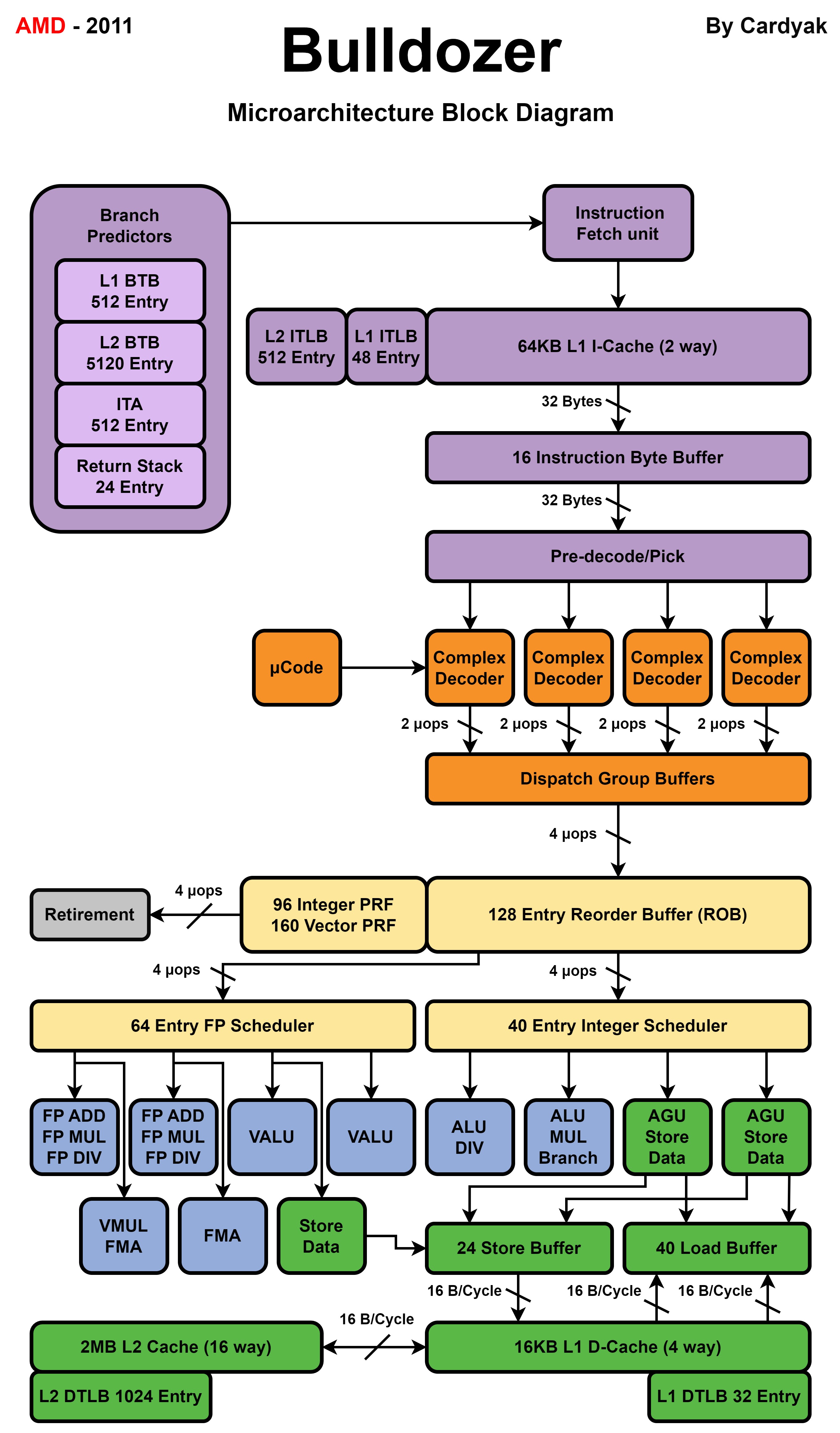

2011 - Bulldozer:

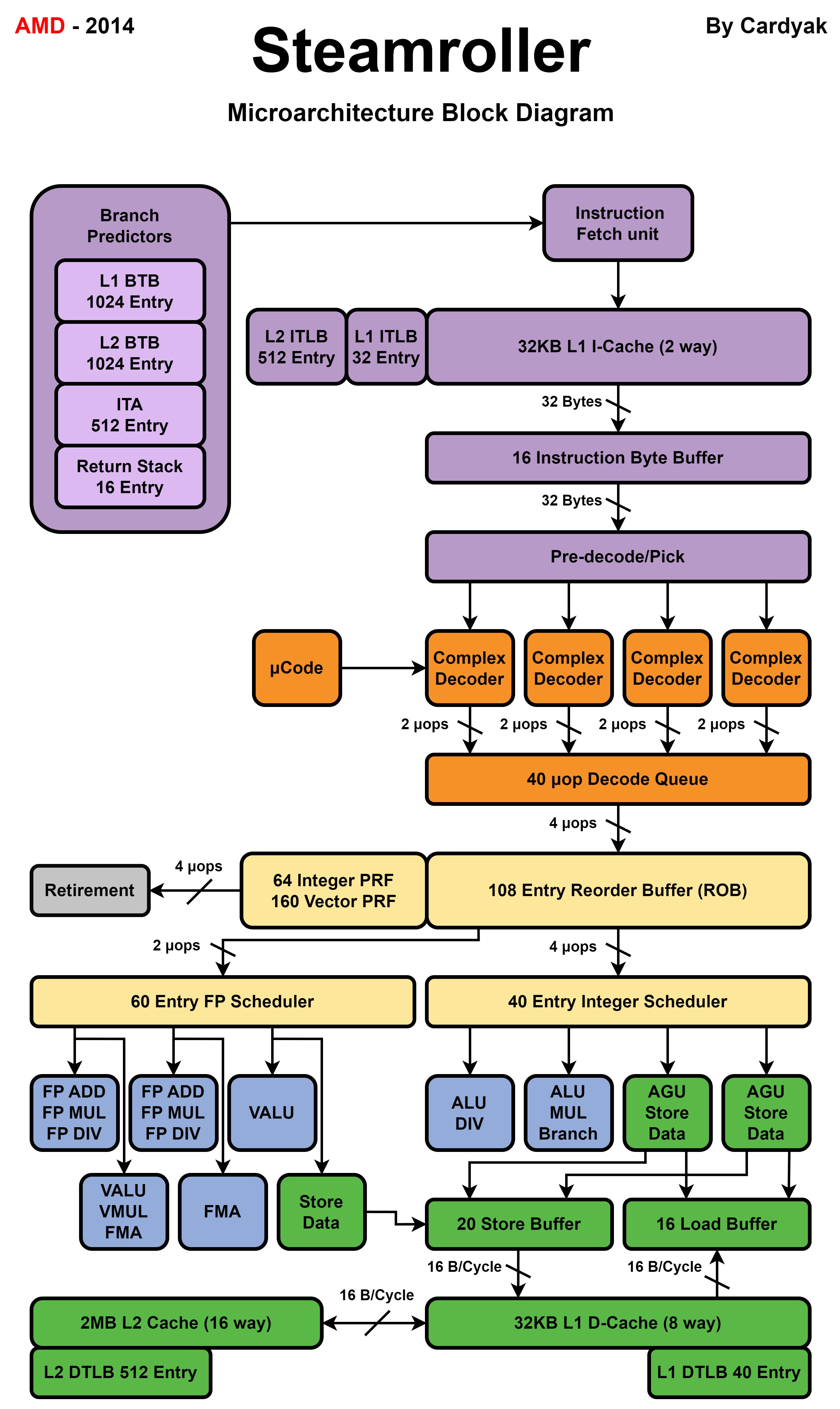

2014 - Steamroller:

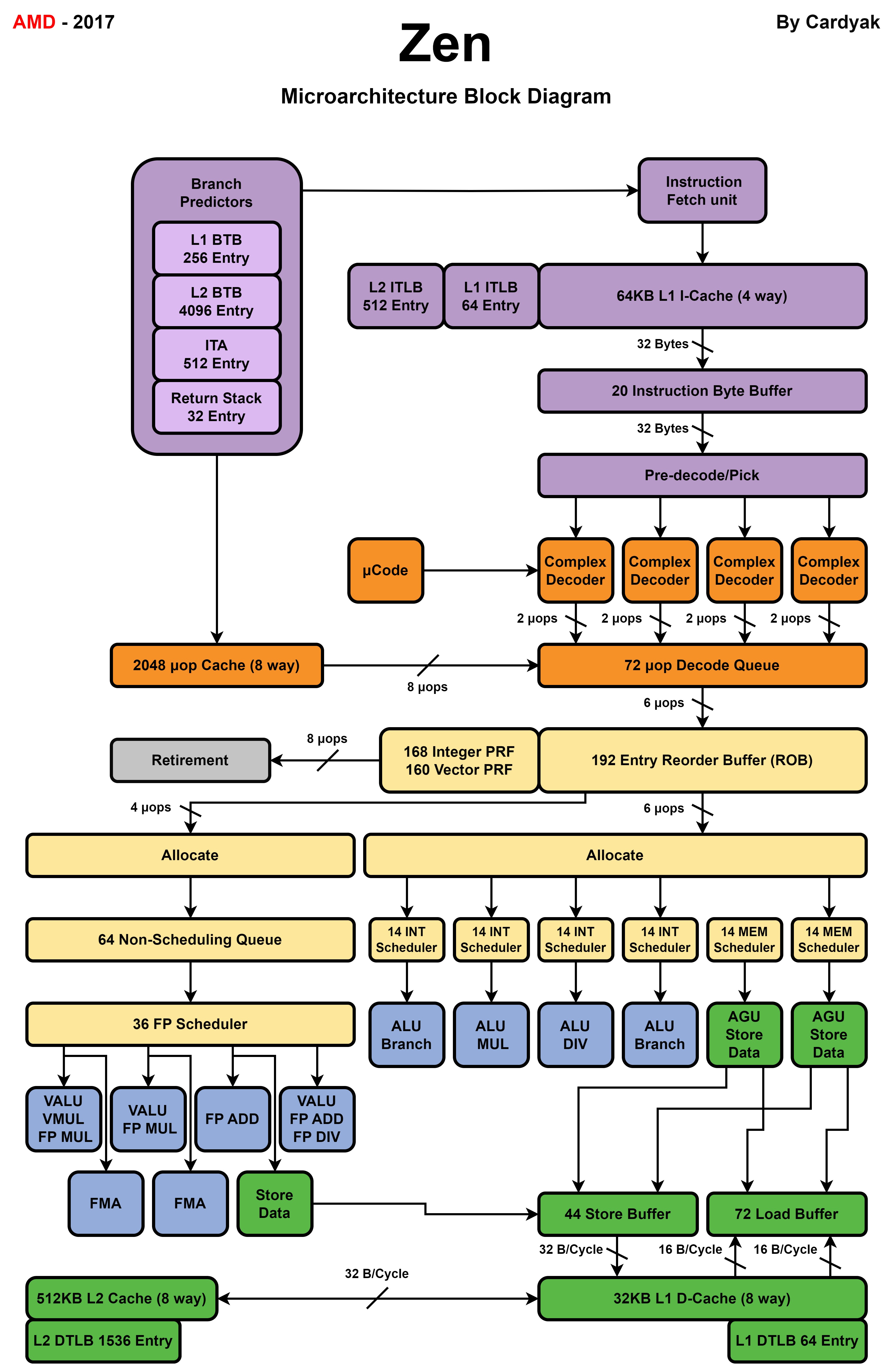

2017 - Zen:

2019 - Zen2:

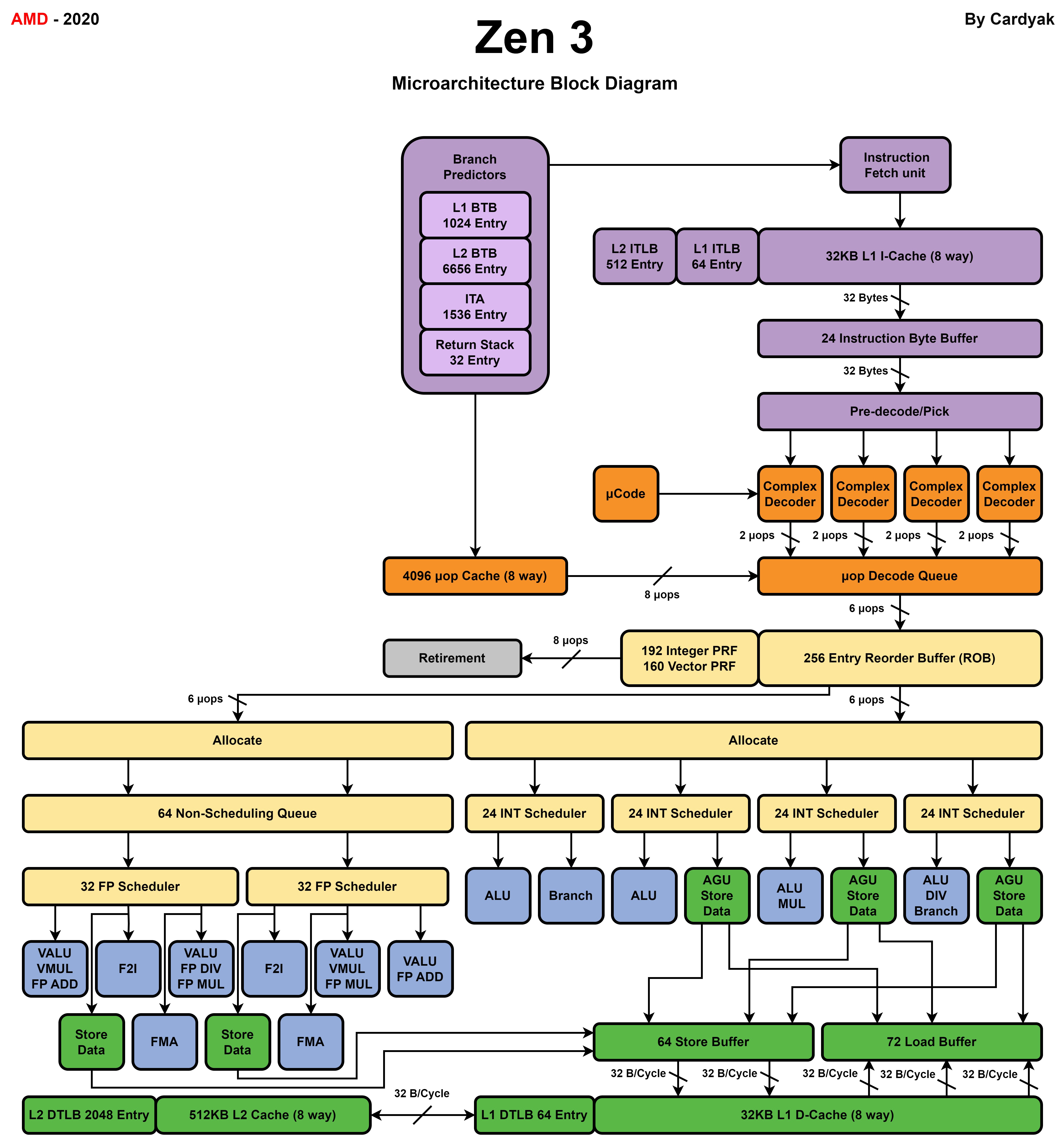

2020 - Zen3:

2022 - Zen4:

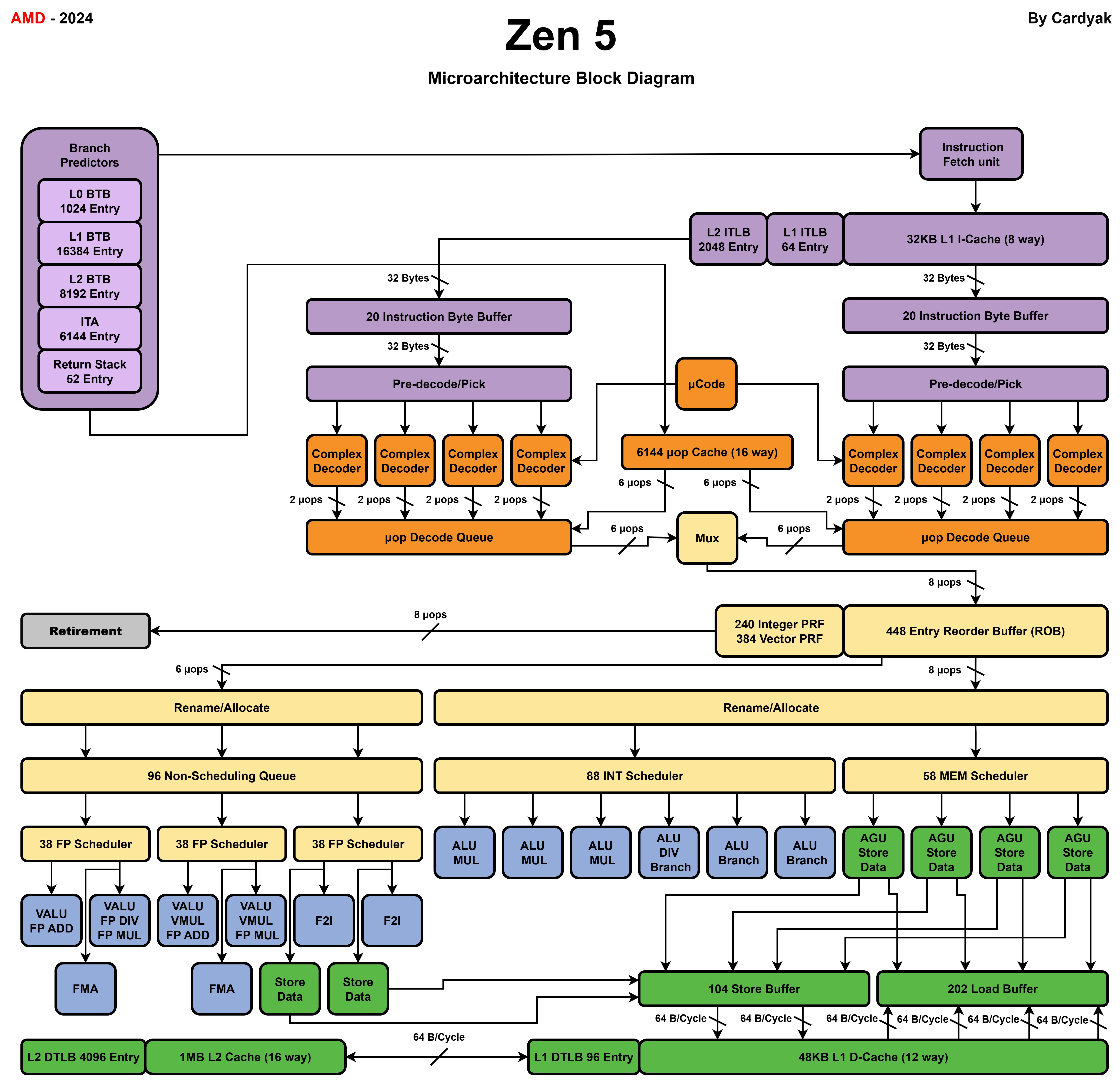

2024 - Zen5:
